Table Input~ | Strife Docs

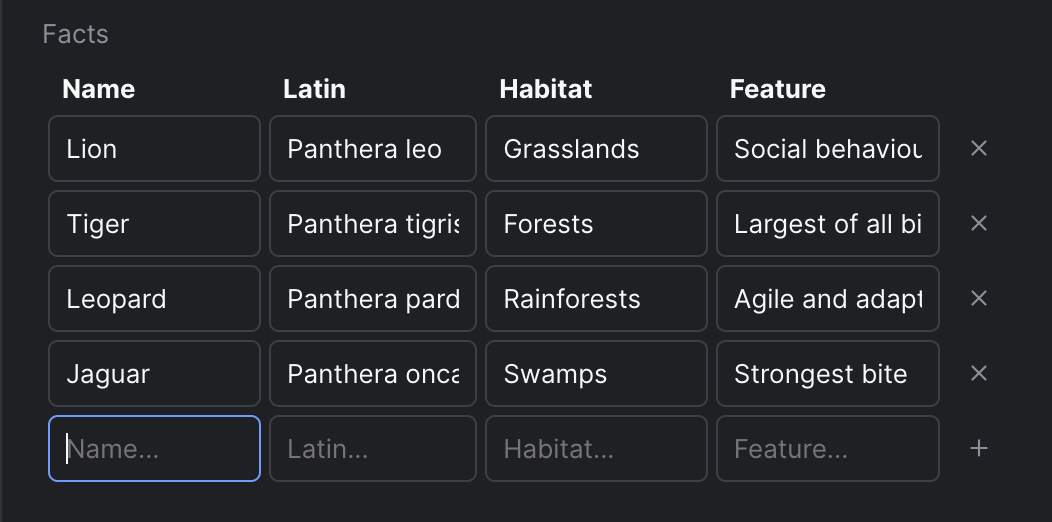

Strife Studio screenshot of an Table Input field

The tilde (~) denotes that the field is available in developer preview only.

Settings

In addition to the basic settings, this section provides information about unique settings and configurations specific to this field.

You can find a comprehensive list of all basic settings in the 'Overview' section.

Option	Description
Headers	A JSON array of strings specifying the column headers. E.g `["Name","Latin","Habitat","Feature"]`
Input types	Specifies the input types for each header using a JSON array of strings. Supported types include 'text', 'number', 'date', 'datetime-local', 'email', 'month', 'tel', 'time', 'url', 'boolean', and 'multistring'. E.g. `["text","text","text","text"]`
Options	A JSON object containing the options for every 'multistring' input type. Use camel case header as property name. E.g. `{"columnHeader": []}`
Sortable	Enables sorting in the Table Input field, which allows users to click on column headers for sorting.
Sort by	Specifies the default sorting column header.
Sort direction	Specifies the default sorting direction.
Searchable	Enables search for large data sets.
Display row numbers	If enabled, row numbers will be displayed in the Table Input field.
Exportable	If enabled, the table can be exporterd/imported to/from CSV
Export delimiter	Choose a delimiter for the export; file formats (CSV, TSV, TXT)

Define with JSON

When defining templates using JSON, this field is represented using:

Component Name: str-table-input
Type: table-input
Reference ID: str-table-input

The settings above map into the editor.attributes object inside the JSON definition.

JSON

{
  ...
  "editor": {
    "name": "str-table-input",
    "type": "table-input",
    "propertyName": "...",
    "attributes": {
      "sortable": true,
      "sortBy": "...",
      "sortDirection": "asc",
      "searchable": false,
      "rowNumbers": false,
      "exportable": false,
      "exportDelimiter": "..."  //','|'\t'|';'|'|'
    },
    "options": {
      "headers": "...",
      "inputTypes": "...",
      "options": "...",
    }
  },
  ...
}

Live preview

This field does not have any default Strife Web Components. Custom live preview implementations are fully supported.

For more information on live preview and Strife Web Components, please refer to the Live preview documentation.
